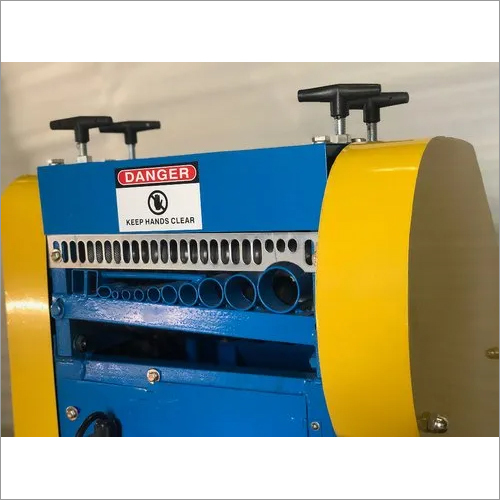

Automatic Scrap Copper Wire Stripping Machine

Name: Automatic Scrap Copper Wire Stripping Machine
Brand: SATYAJEET MACHINE TOOLS
Price: 74000 INR
Availability: InStock

Price 74000 INR/ Unit

Get a Price/Quote

Automatic Scrap Copper Wire Stripping Machine Specification

Manufacturing Year
2024

Drawing Material
Copper

Inlet Diameter
1 mm - 60 mm

Condition
New

Drawing Passage
Multiple Channels

Function
Automatic Wire Stripping

Production Speed
Adjustable, up to 30 m/min

Application
Industrial

Wire Material
Copper, Aluminum

Voltage
220V / 380V (customizable)

Product Type
Copper Wire Stripping Machine

Production Capacity
400 kg/hr Kg/hr

Power
220-440 Volt (v)

Max De-coiler Weight
Up to 500 kg

Safety Features
Emergency Stop, Protective Covers

Operating Temperature
0-40C

Wire Feeding Type
Manual and Automatic

Blade Material
High Speed Steel

Stripping Method
Rotary and Roller Feed

Overall Dimensions
Approx. 920 x 420 x 650 mm

Machine Weight
150 kg

Noise Level
Less than 70 dB

Display Interface
Digital Control Panel

Automatic Scrap Copper Wire Stripping Machine Trade Information

Supply Ability
10 Per Month

Delivery Time
20 Days

Main Export Market(s)
Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia

Main Domestic Market
All India

About Automatic Scrap Copper Wire Stripping Machine

Automatic Scrap Copper Wire Stripping Machine we propose is mainly designed for industrial usage. This type of stripping machine performs with production capacity ranging of 100kgs to 2000kgs due to its frequency of 50Hz, three phase electricity power supply, and voltage of 220V/440V. Ideal for aluminum and copper wire of maximum diameter of 50mm, it is capable of removing the rubber/plastic insulation from the scrap aluminum or copper wire at high speed due to its stripping mechanism and sturdy mild steel powder coated body. Further, clients can buy Automatic Scrap Copper Wire Stripping Machine in different models at compromising prices.

Product Details:

Capacity	100kg to 2000kgs
Model Name/Number	Rm-1
Automatic Grade	Semi-Automatic
Power Source	Electric
Design	Standard

Advanced Wire Stripping Capabilities

Equipped with rotary and roller feed mechanisms, this machine expertly strips copper and aluminum wires. Its adjustable production speed and multiple channel passages enable versatility, handling a wide range of wire sizes and maximizing efficiency for industrial-scale operations.

User-Friendly Digital Control

The integrated digital control panel allows for intuitive operation, precise adjustments, and real-time monitoring of key parameters. Operators can tailor settings for manual or automatic feeding, customize production speed, and ensure optimal stripping results for different wire types.

Safety and Durability Ensured

Safety is central to this design, featuring emergency stop functions and protective covers. The robust high-speed steel blades withstand continuous use, while the machine's solid construction and low noise output support a safe, comfortable working environment.

FAQ's of Automatic Scrap Copper Wire Stripping Machine:

Q: How does the machine strip different types of wire insulation?

A: The machine uses a combination of rotary and roller feed stripping methods, enabling thorough removal of insulation from both copper and aluminum wires of varying sizes. Multiple drawing passages and adjustable blades accommodate wire diameters from 1 mm to 60 mm.

Q: What is the process for operating the wire stripper?

A: Operators can select either manual or automatic wire feeding through the digital control panel. After loading the wire (up to 500 kg de-coiler weight), the machine automatically adjusts its speed and stripping process according to user-set parameters for efficient results.

Q: When should the emergency stop feature be used?

A: The emergency stop button should be pressed immediately if an unsafe condition arises, such as a mechanical jam, unexpected object in the feeding mechanism, or when maintenance is required, ensuring rapid machine shutdown for operator safety.

Q: Where is this machine typically installed and used?

A: This wire stripping machine is engineered for industrial environments within manufacturing plants, recycling centers, or large workshops. Its compact dimensions and moderate weight allow installation in spaces where high-volume wire processing and safety standards are needed.

Q: What are the main benefits of using this automatic wire stripper?

A: Key benefits include high production capacity (up to 400 kg/hr), adjustable speed for various wire types, low noise operation, digital control for precision, and reinforced safety features. These advantages streamline operations and increase productivity in industrial wire recycling.

Q: How does the machine support different wire materials and sizes?

A: With customizable settings and multi-channel drawing passages, the device efficiently handles both copper and aluminum wires, accommodating a wide inlet diameter range. Adjustable blades and feed mechanisms enable quick adaptation to different wire specifications.
